Contents of a Paragraph (New Workspace)

In the new workspace editor, use the different options and contents of a project element paragraph to move, modify, and specify values for the paragraph.

Navigate to the following contents:

Options

The following options for each paragraph are available:

Button Description
Add Content Click this button to add a new paragraph immediately after this paragraph as a sibling.

For more information, see Addition of Element Contents.

Tip: To add a subparagraph to a given paragraph, add a new paragraph and demote the new paragraph as a subparagraph of the given paragraph.
Activate Content or Inactivate Content Click this button to activate or inactivate the paragraph.

When you inactivate a paragraph, you disable modifications for the paragraph and all subparagraphs under it without discarding any existing changes. You also temporarily hide specification contents for the paragraph from the preview and output. When you activate a paragraph, you enable modifications for the paragraph and show specification contents for the paragraph in the preview and output.

For more information, see Activation of Element Contents and Inactivation of Element Contents.

Dotted Icon Use this icon to drag and drop the paragraph to its desired position. You can only move the paragraph to another position within its parent article.
Click this button to display the following options:
    • Manage Options: Show options for managing the paragraph's option set.
      • Reset All Options: Select this option to reset all options within the option set to the default state.
      • Deactivate Options: Select this option to set all options within the option set to the inactive state.
  • Move Block: Show options for moving the paragraph.
    • Up: Move the paragraph one position up. As a shortcut, press SHIFT+ALT+UP.
    • Down: Move the paragraph one position down. As a shortcut, press SHIFT+ALT+DOWN.

For more information, see Arrangement of Element Contents.

The availability of these options are based on your user permission.

Contents

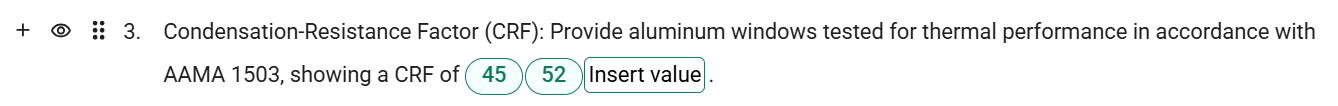

Use the following example of a paragraph to learn about the available items within a paragraph:

In the editor, a combination of the following items for each paragraph are available:

Item Description
Property Title (Key) For user-added paragraphs, click the property title and enter text to modify the title.

This serves as a title for the paragraph or property in the family, section, or product type element. Typically, Specpoint uses this as a key in product type properties for your project's product selection. The paragraph's property title is unique among its sibling paragraphs under a given parent paragraph or article.

In the given example, the following is the property title:

Condensation-Resistance Factor (CRF)

Paragraph Content (Value) Click the paragraph content and enter, delete, cut, copy, or paste text to modify the content.

This indicates the actual information for a given element such as a paragraph, a single sentence, or phrase. The available specification content varies per paragraph/property. Typically, the paragraph content provides a description about the project element or adds context to the option set.

In the given example, the following is the paragraph content:

Provide aluminum windows tested for thermal performance according to AAMA 1503, showing a CRF of <Option Set>.

Option Set Use these options to select or enter values in a paragraph and specify properties according to your project requirements. Examples of these properties for selection are measurements, materials, and inclusions.

In the given example, the following is the option set:

(45) (52) [Insert value]
As an administrator or author, you can perform any of the following as applicable:
  • In the text field ([Insert]), enter the value that is required by the paragraph/property and the value's unit of measure, if applicable.
  • Enter multiple values. Values that you entered display in pills and you can click the x in each pill to delete the value.
  • Select one or multiple options that are available.

For more information, see Option Set.

For more information, see Modification of Element Contents.
