Dictionary Import

When you want to change the labels in a custom dictionary, you can do so using the Dictionary Label form or various pop-up forms in the Events, Message Definition, Dialog Element, and Message Policy forms. The dictionary import feature will allow you to update multiple labels at once instead of updating each label individually.

For example, you may need to create a dictionary in a language other than English, French, German, or Spanish (the application comes with predefined English, French, German, and Spanish dictionaries). You can use the dictionary import to add all the new labels to the custom dictionary at one time.

The dictionary import takes the values from a file (such as a .csv file) and places them in the custom dictionary. If the custom dictionary has not yet been created, the import will create it.

See Also:

Create the Dictionary Import Definition

Creating the Dictionary Import File

Invalid Characters for the Dictionary Import

Importing Languages with Diacritic Characters

Create the Dictionary Import Definition

The application comes with a pre-defined Import Definition called DICTIONARY_IMPORT. It is recommended that you copy this Import Definition and modify the duplicate as necessary.

1. Click Main Menu > Configuration > Interfaces > Import Definition.

2. Click the button next to the Import Name field and select Maintain from the pop-up menu.

3. In the Import Source pop-up window, select the system-defined dictionary import called DICTIONARY_IMPORT.

4. Click Copy.

5. Change the Import Name and, if necessary, change the Import Type. Then, click Save.

6. In the Import Source pop-up window, select the dictionary import you just created and click OK.

   The dictionary import you just created will display on the Import Definition form.

7. Click the Source Fields tab.

8. Add, delete, and move the fields as necessary to correspond with the data you will be importing.

   The following fields are required in a dictionary import: Dictionary Name, Module Name, Label Type, Label Name, Long Label, and Short Label. You can also include the following fields: Description, Locale, Base Dictionary, and Alternate Dictionary Name.

   See Create the Dictionary Import File for information on what kind of data to include in your dictionary import file.

9. Make sure you enable the dictionary import in the correct instance of the IMPORT_FILES service. The dictionary import needs to be in the Selected box of the IMPORT_NAME parameter.

Creating the Dictionary Import File

When you create your dictionary import file, make sure the data in the file is formatted correctly as explained below.

For more information on what fields you need to include in the import file, see doc-INTERFACE-events-AUTOTIME.

Supported Actions

You can add, update, and delete labels using the dictionary import.

Add (A)

The Add action is used to add labels to a custom dictionary if the label does not yet exist. If the label already exists, it will be updated.

For example, if your dictionary import file includes a record to Add the form label “Persona” for the Employee form, the form label will change from “Person” to “Persona” (the Add is effectively an Update).  Note that if you delete the “Persona” label, the form label will revert back to “Person” (the label from the Base Dictionary).

When you add a dictionary label, you need to include both the LONG_LABEL and SHORT_LABEL in your dictionary import file.

Update (U)

The Update action is used to change the labels in a custom dictionary. If the label does not yet exist, it will be added.

When you update a dictionary label, you need to include the LONG_LABEL or the SHORT_LABEL (or both) in your dictionary import file.

Delete (D)

When you delete a label from the custom dictionary, the label from the Base Dictionary will be used instead. For example, if your custom dictionary changes the label of the Employee form to “Persona” and you then delete the “Persona” label, the label will become “Person” again.

When you delete a dictionary label, you do not need to include the LONG_LABEL or SHORT_LABEL in your dictionary import file.

Formatting the Data in the Import File

DICTIONARY_NAME

The Dictionary Name in your import file must be a custom dictionary. You cannot import labels to one of the TEMPLATE dictionaries.

If the Dictionary Name does not yet exist, the dictionary import will create the new dictionary using the BASE_DICTIONARY_NAME, DESCRIPTION, and LOCALE you provide. If you do not specify a BASE_DICTIONARY_NAME, DESCRIPTION, and LOCALE, the new dictionary will be created using TEMPLATE-DEFAULT-EN-US as your Base Dictionary.

Similarly, the ALTERNATE_DICTIONARY_NAME, if it is included in your import, must be an existing custom dictionary (not one of the TEMPLATE dictionaries).

If you include a BASE_DICTIONARY_NAME in your dictionary import, the Base Dictionary must be one of the TEMPLATE dictionaries.

The dictionary import cannot be used to delete a custom dictionary. To delete a custom dictionary, you must use the Dictionary form.

LABEL_TYPE, MODULE_NAME

Your dictionary import file must include the Module Name and Label Type of the label you are importing. The Module Name indicates where the label will be viewed. For example, the BCOREWEB module is for labels that appear in the Web application. The B-CLIENT XML 10 module is for labels that display on B-Web 9500 terminals.

The following table lists the Module Names and Label Types you can include in your dictionary import file.

LABEL_NAME

The Label Name in your dictionary import file must correspond to a record with the same Label Name, Label Type, and Module Name in the Base Dictionary.

LONG_LABEL, SHORT_LABEL

If you are deleting a dictionary label, you do not need to include the LONG_LABEL or SHORT_LABEL in your dictionary import file. When you delete a label from the custom dictionary, the label from the Base Dictionary will be used instead. For example, if your custom dictionary changes the label of the Employee form to “Persona” and you then delete this label, the label will become “Person” again.

If you are adding a dictionary label, you need to include both the LONG_LABEL and SHORT_LABEL in your dictionary import file.

If you are updating a dictionary label, you need to include the LONG_LABEL or the SHORT_LABEL (or both) in your dictionary import file.

If you are updating a Long Label or Short Label that has semantics, you need to include the semantic in your new label. For example, the label [%EMP_NAME%], Early clock in displays a message in which the semantic [%EMP_NAME%] is replaced with the name of the employee. The label you are importing must also include the semantic [%EMP_NAME%] in order to display the employee’s name in the new message.

Event Labels

Module Name PVE, Label Type EVENT, EVENTPROMPT, or PROMPT

Use this configuration to add or modify event labels and event prompt labels, and to modify the labels of folders in Menu Trees.

If your Label Type is EVENT, the Label Name must be the name of an existing event.

If your Label Type is EVENTPROMPT, the Label Name must be formatted as EVENT_NAME.PROMPT_NAME and the PROMPT_NAME must exist for the EVENT_NAME.

The Label Type PROMPT is for event prompts that exist in the prompt table.

Terminal Menu Labels

Module Name PVE, Label Type TERMINALMENU

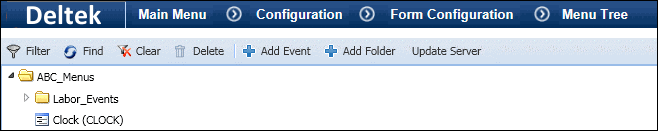

The Label Type TERMINALMENU is used to update the names of folders in Menu Trees. These folders are used to group events that display in terminal menus. The Label Type Terminal Menu Label will only display in a custom dictionary after you have added the folder in the Menu Tree form. You can use the dictionary import to update this folder name.

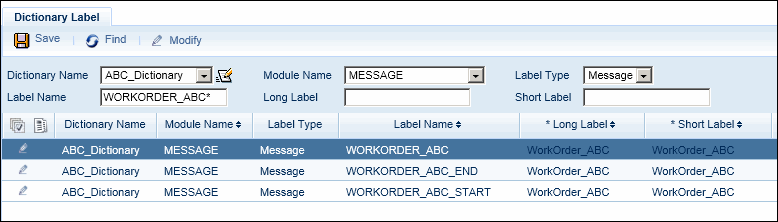

Message Labels

Module Name MESSAGE, Label Type MESSAGE

Use this configuration to update event messages and error messages.

For custom event names that display in messages on client terminals and/or the web application, the LABEL_NAME must be an existing event or the event name followed by _ADD , _START, _STOP, _SS, or _END.

Module Name MESSAGING

The LABEL_TYPE can be EMAIL_HEADER, EMAIL_SUBJECT, EMAIL_TEXT, EMAIL_TRAILER, or TERMINAL_TEXT.

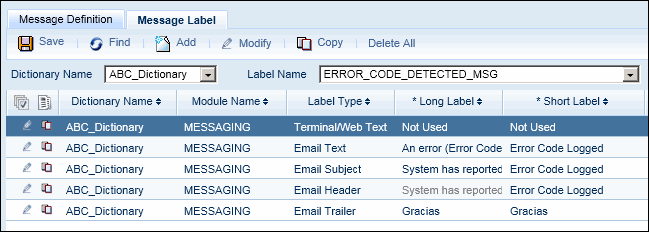

For Message Definition labels, the LABEL_NAME in the dictionary import file must match the Label Name of the Message Label.

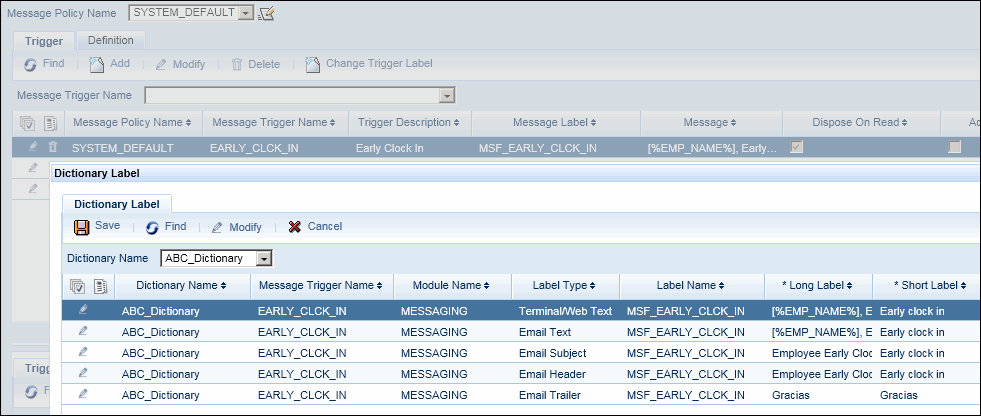

For Message Triggers including Event Message Triggers, the LABEL_NAME in the dictionary import file must match the Label Name of the trigger.

Dialog Message Labels

Module Name DIALOG, Label Type Response

Use this configuration to update the responses to a dialog message.

The Label Name in the dictionary import file must match an existing Dialog Element’s Label Name.

Invalid Characters for the Dictionary Import

Long and Short Labels in your dictionary import file cannot include the following characters:

^ < > “ ‘ &

Note, however, that the < and > characters may be entered in the Dictionary Label form.

Importing Languages with Diacritic Characters

If the labels in your dictionary import file include diacritic characters (å, á, ö, and so on), make sure the default charset for your application server platform (Windows or Linux) supports these characters.

If your application server platform does not support diacritic characters, you will need to:

• Save the dictionary import file with UTF-8  encoding to preserve the diacritic characters.

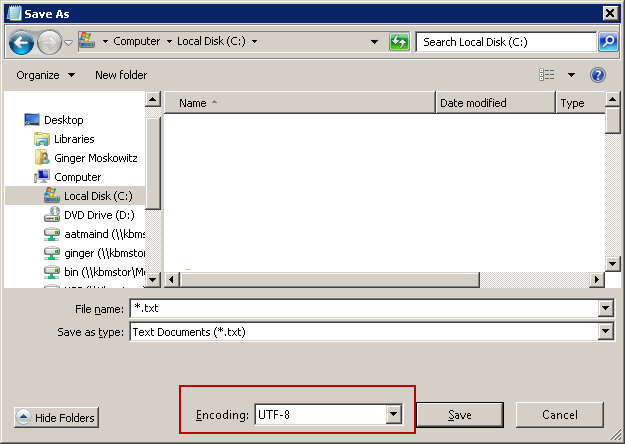

  For example, if you are saving the dictionary import file in Notepad, you can select UTF-8 encoding in the Save As box.



• Set a Java Option for UTF-8 encoding in JBoss or WebLogic.

  For example, in JBoss, add the parameter -Dfile.encoding=UTF-8 to the standalone.conf.bat file.
