Revenue Forecast Chart

The Revenue Forecast chart provides an overview of potential revenue for future periods based on a combination of existing project backlog and estimated pipeline revenue.

Chart Data

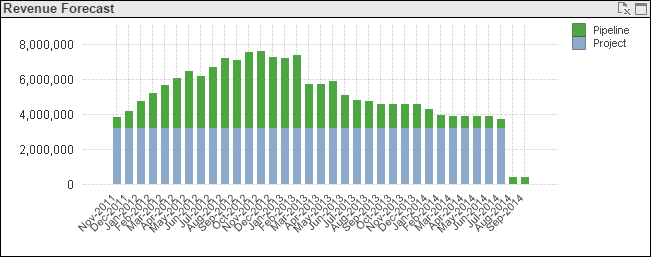

In this stacked bar chart, each bar represents the total forecasted revenue for a period. Each bar segment represents a component of that total:

• Blue (lower) segment: Forecasted revenue from your project backlog for the period
• Green (upper) segment: Forecasted revenue from the opportunities in your pipeline for the period

The Unweighted and Weighted options under Pipeline Probability Weighting provide the additional option to calculate forecasted revenue using either unweighted pipeline amounts or weighted pipeline amounts (pipeline amounts that are adjusted based on win probability).

Hover over a bar segment to display a tooltip containing the revenue amount represented by that segment.

Supporting Tables

The Pipeline Revenue columns in the Forecast by Opportunity table and Forecast by Project table indicate the contribution of each opportunity or project to the Revenue Forecast for each period. The Change in Backlog columns indicate the corresponding changes in backlog. For example, if an opportunity is expected to contribute 10,000 in revenue for a period, that increases forecasted revenue and decreases backlog by that amount. 10,000 displays in Pipeline Revenue and (10,000) displays in Change in Backlog for that opportunity and period.

As Of Dates

The two dates displayed in the upper-left corner of the dashboard are used as the starting points for the forecast data. Those dates may be different because they come from different sources:

• The Project As Of date is the end date of the earliest fiscal period for which project backlog forecast data is included.
• The Pipeline As Of date is the earliest date for which pipeline forecast data is included.

Filter Options

Use the filter lists on the left side of the dashboard to focus the chart on...

• Forecast data for a specific company (if your firm has multiple companies in Costpoint).
• Forecast data for one or more specific organization codes. Use the icon at the top of the Org filter list to display organization codes for all levels of the organization structure or only the organization codes for a specific level. (If ~No Value~ displays in the Org list, it indicates that one or more opportunities are not assigned to an organization. You can select ~No Value~ to focus the chart on those opportunities.)

Export to Excel

To export the data underlying this chart to a Microsoft® Excel® spreadsheet, click in the upper-right corner of the chart.
