Defining Resource Profiles
The use of assignment offsets and periods, combined with the ability to specify more than one assignment for the same resource, allows you to define a resource profile for an activity.
Using offsets and periods, for example, you can construct the following profile by defining a resource assignment for an activity with a duration of 5 days:
| Resource | Curve | Level | Offset | Period |
|---|---|---|---|---|
| TUBING | (blank) | 50 | 0 (or blank) | 5d (or blank) |
| TUBING | (blank) | 25 | 2d | 3d |
| TUBING | (blank) | 100 | 3d | 1d |

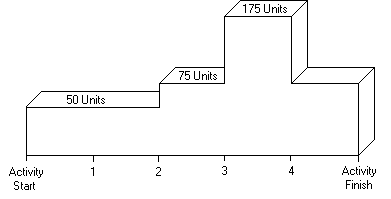

This would result in the following resource profile:
