SSO Policy

The SSO Policy form defines the configuration parameters used to connect/communicate with a Kerberos server for SSO (Single Sign On) authentication. Single Sign On is similar to LDAP or Trusted Login authentication, in that the user does not have to enter their User Name and Password to log into the application. Instead they will be logged in automatically when they enter their domain user name.

Note: SSO configuration should only be performed by a system administrator.

SSO Authentication requires the following configuration steps:

  1. Configure Shop Floor Time as a Service Principal on the Kerberos Server

  2. Configure Java for Kerberos Using krb5.conf

  3. Create an SSO Policy

  4. Assign the SSO Policy to Your Web Application

You can also configure Shop Floor Time for SSO Configuration with SAML. The SSO Policy is not needed for this type of SSO authentication. Refer to the Shop Floor Time SSO with SAML Configuration Guide for more information.

See Also:

SSO Policy Field Descriptions

Find, Add, Modify, Delete, or Copy and SSO Policy



SSO Policy Field Descriptions

Policy Name

Name of the SSO Policy.

Use Keytab File

Indicates whether a keytab file will be used to communicate with the Kerberos server.

If you check this box, Shop Floor Time will communicate with the server using a keytab file. You will need to specify the name of this file in the Keytab File field. The keytab file is created when you configure Shop Floor Time as a service principal on the Kerberos server. You will also need to specify the Principal.

If you do not check this box, then Shop Floor Time will communicate with the server using the User Name and Password of the Service Principal account. The User Name and Password are specified in the SSO Policy (see below).

Keytab File

If you checked the Use Keytab File box (see above), you need to enter the name of the Keytab File in this field. This file must be located in the \app directory.

Principal

Identifies the Service Principal as registered on the Kerberos Server. For example, HTTP/autotime7jb.kasg.com. See Configure Shop Floor Time as a Service Principal on the Kerberos Server.

User Name

The user name of the Service Principal registered at the Kerberos Server.

Password

The password of the Service Principal registered at the Kerberos Server.

Update Date, Updated By

These fields display when the record was created or updated, and the person who created or updated the record.



Step 1: Configure Shop Floor Time as a Service Principal on the Kerberos Server

The steps that are necessary to configure Shop Floor Time as a Service Principal on the Kerberos server depend on the type of environment you are using. The steps below assume that Active Directory is used as Kerberos Server and that the commands shown below are run on the Active Directory machine.

The values entered here will be used when creating the SSO Policy in Shop Floor Time .

Sample values used in these steps:

Domain: KASG.com

Machine Name: wfautotime

Domain Login Name: wfatuser

Domain Password: abc#12345

1. Create a User Account in Active Directory. In this example, the Login Name and Password shown above are used (wfatuser/abc#12345)

Account options:

Password Never Expires

User Cannot Change Password

Does Not Require Kerberos Pre-Authentication (use Account tab)

2. Create Service Principal Name and associate with User Account

Run the commands from a prompt:

setspn -A HTTP/wfautotime.KASG.com wfatuser

setspn -A HTTP/wfautotime wfatuser

3. Create the keytab file (if your SSO Policy uses keytabs)

Run the command from a prompt (all one line):

ktpass -out C:\at7user.keytab -princ HTTP/wfautotime.KASG.com@KASG.COM - pass abc#12345 -mapuser wfatuser@KASG.COM -crypto RC4-HMAC-NT -ptype KRB5_NT_PRINCIPAL

Note: The keytab file must be located in the \app directory.



Step 2: Configure Java for Kerberos Using krb5.conf

The following steps describe one way to configure Java to use Kerberos as an authentication mechanism. For more information, see http://download.oracle.com/javase/1.5.0/docs/guide/security/jgss/tutorials/KerberosReq.html.

The Java runtime will look for the krb5.conf file under JAVA_HOME/jre/lib/security to obtain the “default realm” (Domain) and “default kdc” (Kerberos Key Distribution Center). All values are case sensitive.

Sample template for krb5.conf file:

[libdefaults]

  default_realm = [Domain Name Upper Case]

  default_tkt_enctypes = aes128-cts aes256-cts arcfour-hmac-md5

  default_tgs_enctypes = aes128-cts aes256-cts arcfour-hmac-md5

  permitted_enctypes   = aes128-cts aes256-cts arcfour-hmac-md5

[realms]

  [Domain Name Upper Case]  = {

    kdc = [Kerberos Server].[Domain Name]

    default_domain = [Domain Name Upper Case]

  }

[domain_realm]

  .[Domain Name] = [Domain Name Upper Case]

A sample krb5.conf file is shown below using the following values: Domain Name: KASG.com, Kerberos Server: kasgldapsrv

 [libdefaults]

  default_realm = KASG.COM

  default_tkt_enctypes = aes128-cts aes256-cts arcfour-hmac-md5

  default_tgs_enctypes = aes128-cts aes256-cts arcfour-hmac-md5

  permitted_enctypes   = aes128-cts aes256-cts arcfour-hmac-md5

[realms]

  KASG.COM  = {

    kdc = kasgldapsrv.kasg.com

    default_domain = KASG.COM

  }

[domain_realm]

  .kasg.com = KASG.COM



Step 3: Create an SSO Policy

  1. Click Main Menu > Configuration > Policies > SSO Policy.

  2. Click Add.

  3. On the Add SSO Policy form, enter the Policy Name.

  4. Use the remaining fields to indicate how Shop Floor Time will connect to the Kerberos server. Select the Use Keytab File checkbox and enter the name of the Keytab File or enter the Username and Password.

  5. If you want to add more than one SSO policy, click Save and Add to save your settings and keep the Add SSO Policy window open. Or click Save to save your SSO policy and return to the main form.



Step 4: Assign the SSO Policy to Your Web Application

Once you create your SSO policy, you need to assign it to your Web or Web Time Clock applications. To do so:

  1. Click Main Menu > Configuration > System > Application Settings.

  2. Select the Application Name (WEB or WEB_TIME_CLOCK) and the Setting Type policy_sso.

    If you have multiple instances of the application server with unique application settings, click the Servers tab and select the application server instance to which you will assign the SSO Policy. On the Server Settings tab, select the Application Name (WEB or WEB_TIME_CLOCK) and the Setting Type policy_sso.

  3. Click Modify.

  4. From the Setting Value field, select your SSO policy.

  5. Click Save.

  6. For the same Application Name, select the auth_error_url Setting Type and click Modify.

  7. Enter the relative URL for the page to which user will be redirected when their SSO authentication fails. You must enter a relative URL. For example, to display the Shop Floor Time login page, enter /autotime/login?action=view.

  8. Click Save.

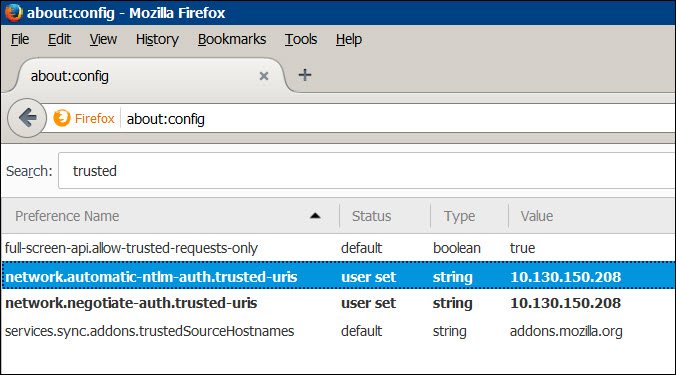

  9. If you are using Firefox as your web browser, you must also add the server name or IP address to the network.negotiate-auth.trusted-uris and network.automatic-ntlm-auth.trusted-uris settings in about:config.

    Enter about:config in the address bar of Firefox to display the advanced settings. In the Search field, enter trusted and press Enter. Double-click the network.negotiate-auth.trusted-uris setting and enter the server name or IP address to which the user will be redirected when their SSO authentication fails. Click OK to save your changes. Repeat this configuraiton for the network.automatic-ntlm-auth.trusted-uris setting.

Note: The Web Time Clock's Terminal Profile must have the Login Event Name field set to LOGIN_XML_PERSON_NUM in order for SSO authentication to work properly.



Find, Add, Modify, Delete, or Copy an SSO Policy

To find a specific SSO Policy, click the Filter area at the top of the form to display the Policy Name filter field. Select the policy you want to view, copy, delete, or modify and click Find.

To add a new SSO Policy, click Add. Enter values in the fields and click Save.

You can modify all the fields in the SSO Policy except the Policy Name. To do so, select the policy and click Modify.

You can copy an SSO Policy and save the duplicate with a new name. To do so, select the policy and click Copy. Change the Policy Name, modify the other fields as necessary, and click Save.

You can delete an SSO Policy if it is not assigned as a policy_sso setting on the Application form.
