Basic Actions on the iPad

When you access Costpoint Analytics or Capture Analytics on the Apple® iPad®, their appearance is much the same as on a laptop or desktop computer. However, primarily because of the absence of a mouse, how you interact with the analytics on an iPad differs from how you interact with them on a laptop or desktop computer.

General Interaction

Most interaction with applications on a laptop or desktop computer involve basic mouse actions for which there are iPad equivalents:

Laptop or desktop computer action

iPad action

Click or double-click to select something (list item, tab, and so on) or initiate an action.

Tap

Scroll a list or window.

Swipe

For other actions, such as the right-click with the mouse, the iPad has no corresponding gesture. In most cases, however, alternatives to direct gestures exist for carrying out actions.

Interacting with Analytics on an iPad

The following table describes how to carry out specific interactions with the analytics on an iPad:

Action

On the iPad

Move from one of the summary analytics on the Summary Dashboard to the corresponding detail analytics.

Tap the label for the summary analytic.

For example, to go to the detail analytics for profit, tap Profit.

Move from one set of detail analytics to another (from Costpoint Analytics – Project to Costpoint Analytics – Employee, for example).

  1. Tap the down arrow in the navigation box in the upper-left corner of the page.

  2. In the drop-down list, tap the analytics you want.

  3. Tap Go.

If your firm only has Capture Analytics, this navigation box is not displayed because you can use the tabs to navigate to all of the analytics.

Go to a different analytic tab.

Tap the tab.

Follow a link.

Tap the link.

Select a toolbar icon.

Tap the icon.

Select a single item in a list.

Tap the item.

Select multiple items in a list.

Tap-and-hold (press your finger) on the list until this toolbar displays:


Then tap each item, and tap the check mark when you are done to confirm your selections.

For lists with check boxes next to each item, you can just tap each one. Tap-and-hold is not necessary.

Use the Cycle icon (Common_Cycle_icon.png) for a list, chart, or table.

Tap Common_Cycle_icon.png  one or more times until the list from which you want to select filter values is displayed.

Clear multiple selections in a list.

Tap-and-hold (press your finger) on the list until this toolbar displays:


Tab the eraser icon to clear the selections. You can then make new selections and tap the check mark, or tap the red X to close the icon bar.

Scroll a list.

Swipe up or down.

Search a filter list.

Tap  Basics_Search.png, tap in the field that displays above the list, and use the iPad keypad to enter the search string.

Note: Pinching out to expand the search field makes it easier to work in the that field.

Display the shortcut menu for a list.

Some filter lists have a Menu icon (Basics_Menu_Icon.png) in the upper-right corner that you can tap to display the shortcut menu.

For lists without the Menu icon, the shortcut menu is not available on the iPad. (Desktop and laptop computer users can right-click to display the menu for those lists, but there is no equivalent iPad gesture.)

Clear all filter selections other than defaults.

Tap Basics_ClearToolbar.pngClear on the toolbar.

Return to previous set of filter options.

Tap Basics_BackPrevBack.png on the analytics toolbar one or more times.

If you use Basics_BackPrevBack.png to go to an earlier view, you can tap Basics_BackPrevForward.png to return to a more recent view.

Clear individual selections in a list.

If only one is selected, tap it.

If more than one is selected and you do not want to clear all of them, tap-and-hold (press your finger) on the list until this toolbar displays:


Then tap each item you want to clear, and tap the check mark when done to confirm that you want to clear the items.

For lists with check boxes next to each item, you can just tap each one you want to clear. Tap-and-hold is not necessary.

Select the analysis period using the calendar bars at the top of an analytic tab.

Tap to select one calendar segment (one year, quarter or period/month).

To select multiple within one group (multiple periods, for example), tap-and-hold (press your finger) on the group until this toolbar displays:


Then tap each segment, and tap the check mark when done to confirm your selections.

Add a bookmark.

Tap Basics_BookmarkAddIcon.png on the toolbar. In the Add Bookmark dialog box, tap fields and use keypad to make entries. Tap check boxes to select. Tap OK.

Display a bookmarked view.

Tap Basics_SelectBookmark.png and tap the bookmark on the drop-down list.

Remove a bookmark.

Tap Basics_BookmarkRemoveIcon.png on the toolbar, tap the Bookmark Name field, tap the bookmark on the drop-down list, tap Remove.

Maximize a table or chart.

Tap maximizechart.png.

If the table or chart is grouped in a container object with one or more other tables or charts, maximize the whole container object.

You can also pinch out to expand a table or chart by expanding the entire display.

Restore a maximized table or chart to its original size.

Tap RestoreChart.png. If you expanded by pinching out, pinch in.

Use Fast Change to change chart or table format.

Tap fast_change_button.gif in the title bar of the chart or table.

"Lasso" legend items, axis items, or data points to focus a chart.

Tap-and-hold (press your finger) on the chart until the selection area displays:


Use your finger to position the green selection area and to drag the green sizing handle in the corner until the selection area touches the data points or legend items you want to select. Tap the check mark to confirm the selection.

Focus a chart by selecting one bar, pie wedge, or line.

Tap the bar, wedge, or line.

Focus a table by selecting one or more rows.

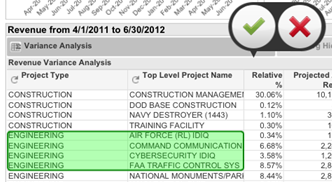

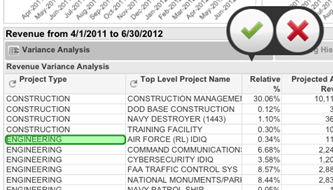

Tap-and-hold (press your finger) on the table until the green selection area displays:


If necessary, use your finger to drag the selection area onto one of the rows you want to select. Use your finger to drag the edges of the selection area to expand it to include the rows you want to select.


Tap the green check mark to confirm the selection.

Sort a non-pivot table by values in a column.

Press, hold, and release the column label.

Change the sort order for a non-pivot table from ascending to descending, or the reverse.

Press, hold, and release the label for the current sort column.

Expand and collapse data in a pivot table.

Tap Common_Expand.png and Common_Collapse.png.

Display hidden charts and tables.

Tap the tab for the chart or table.

Send a chart or table to Microsoft Excel.

Tap Export_to_Excel.png in the upper-right corner of the chart or table.

Note: The resulting .XLS file displays on a new Safari tab. If you need to edit the file in Excel, tap Basics_Mobile_Export.png on the Safari toolbar and email the tab contents to an email account that you can access from a computer on which Excel is installed.

Email a link to the currently displayed analytics data.

Tap More on the toolbar, tap Mail with Bookmark as a Link, and complete and send the email message containing the link.

Display all notes attached to the analytics.

(This option is only available if your firm enables the Notes feature.)

Tap Basics_ShowHideNotesIcon.png on the toolbar.

Attach a note to the analytics.

(This option is only available if your firm enables the Notes feature.)

For lists that have the Menu icon (Basics_Menu_Icon.png) in the upper-right corner, tap that icon to open the Notes dialog box.

Because there is no equivalent to the right-click on an iPad, you cannot display the shortcut menus for charts or tables, or for lists that do not have the Menu icon (Basics_Menu_Icon.png). As a result, you cannot attach notes directly to those objects.

Share your session with others.

(This option is only available if your firm enables the Session Collaboration feature.)

Tap Share session on the toolbar, and invite those with whom you want to share your session.

Actions That Are Not Available on an iPad

Because there is no equivalent to the mouse pointer on an iPad, you cannot hover over charts to view the precise data point values in data boxes.

Because there is no equivalent to the right-click on an iPad, you cannot display the shortcut menus for charts or tables, or for lists that do not have the Menu icon (Basics_Menu_Icon.png). As a result, the options on those menus are not available on the iPad.
