Risk Exposure Comparison

Use the Risk Exposure Comparison chart to compare multiple risk exposure scenarios.

In order to perform a comparison, you need to use the Risk Exposure chart to add distribution curves to the risk comparison.

Note: A message box appears when the comparison report you select has no data for comparison. Click the Exposure Chart hyperlink to go to Risk Exposure Comparison view to add a comparison to the risk driver scenario.

Curves Tab

Use the columns in this tab to hide a step in the graph, change color, edit a name, or remove step data.

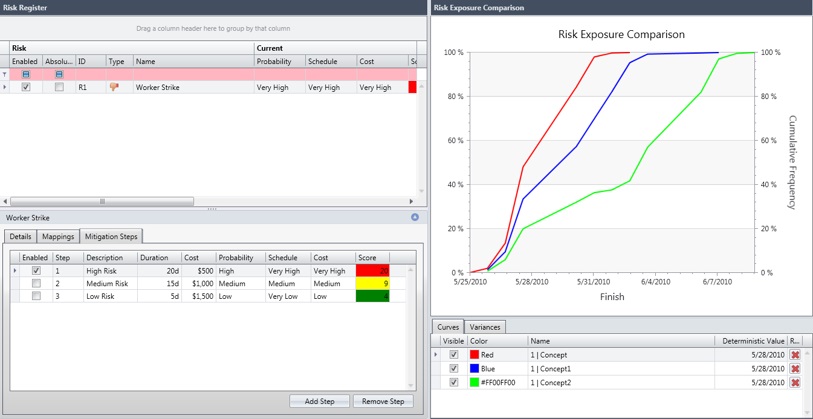

Example of a Risk Exposure Comparison Chart

In the example below, risk analysis with mitigation has been performed three times, once with all three mitigation steps, once with the first two, and once with only the first step selected. The Risk Exposure Comparison chart displays the results of the three scenarios.

Risk Exposure Comparison Chart Example
