Deltek Acumen 8.6 Online Help

Using the Help Search
Using the Help Search
  • Phrase:Returns all topics that contain the exact phrase in the search criteria. Use quotation marks around the phrase.
    Ex."system administration"
  • And:Returns all topics that contain all the words in the search criteria, in any combination. Insert a plus sign between all words in the search criteria.
    Ex.system + administration
  • Or:Returns all topics with any combination of words in the search criteria. This is the default.
    Ex.system administration
For more information:Searching Online Help

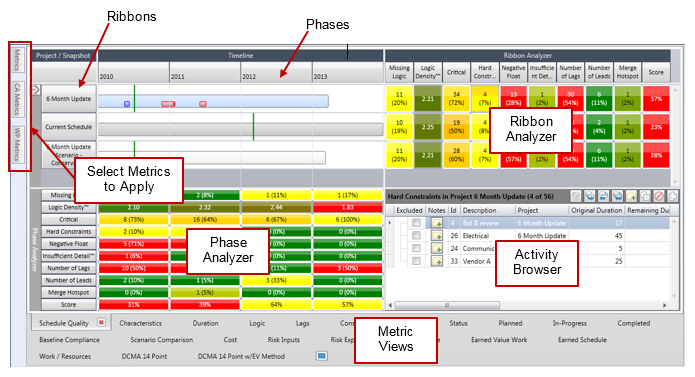

S2 // Diagnostics Tab Views and Commands

This tab includes ribbons and phases, an activity browser, and ribbon and phase analyzers.

Contents

You can use your mouse to hover over a metric and view the metric description in the tool tip. You can edit or add to these descriptions using the metrics Description field on the Metrics tab.

Field Description
Ribbons Ribbons are groupings of activities based on a given criteria.
Phases Phases are user-definable 'segments' of time against which an Acumen Fuse analysis is run.
Ribbon Analyzer The ribbon analyzer shows the results from an analysis for each ribbon.
Phase Analyzer The phase analyzer shows the results from an Acumen Fuse analysis for each phase.
Activity Browser The Activity Browser lists specific activities based on a given criteria. The grid header displays in parenthesis the number of records that tripped the metric as well as the number of records evaluated by the metric. The records may be activities, work packages, or control accounts, depending on the metric.
Use the Define Columns tab on the Metrics tab to specify the columns that display in this grid for each metric.
Metric Views

By default, this tab is automatically populated with multiple sub-tabs containing separate views for each of the metric libraries. You can edit each of these views with regards to adding/removing metrics to each of the three analyzers (ribbon, phase, intersection).

Select Metrics to Apply Use these tabs to add metrics to one or more of the analyzers. You can edit, add, or remove metrics on the Metrics tab.
