Deltek Acumen 8.5 Online Help

Using the Help Search
Using the Help Search
  • Phrase:Returns all topics that contain the exact phrase in the search criteria. Use quotation marks around the phrase.
    Ex."system administration"
  • And:Returns all topics that contain all the words in the search criteria, in any combination. Insert a plus sign between all words in the search criteria.
    Ex.system + administration
  • Or:Returns all topics with any combination of words in the search criteria. This is the default.
    Ex.system administration
For more information: Searching Online Help

Project Analysis

The Acumen Fuse analysis engine uses a combination of ribbons and metrics to run project analytics.

In addition to calculating metrics, Acumen Fuse analysis also determines whether or not defined tripwire thresholds have been triggered.

You can use the Activity Browser to pinpoint which activity(s) are causing the metric tripwire to trigger. The Activity Browser shows activities based on which ribbon, phase, or intersection you click on.

The Acumen analysis engine can analyze across multiple phases as well as segment data by ribbon. The analysis engine automatically calculates duration, cost, and work across phase boundaries and spreads values accordingly.

For example, a 60-day activity starting on January 1 will automatically be segmented into 31 days in January, 28 days in February (assuming a non-leap year), and 1 day in March. The costs and work for this activity also get spread accordingly so that when the metric engine is run, results are not only analyzed for the ribbon as a whole but also within each individual phase.

Similarly, the engine determines, for example, within which phase an activity starts. This in turn enables metrics, such as the number of activities starting within a particular fiscal reporting period, to be created.

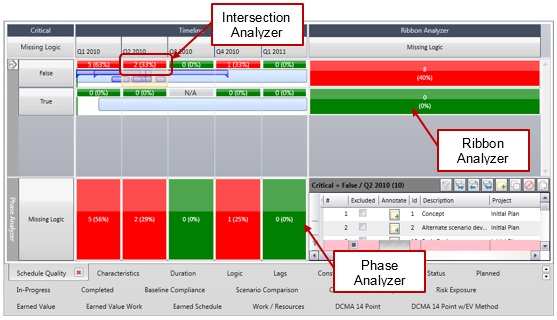

Project Analysis Example

In the example below, the "Missing Logic" metric is being applied to a project.
  • The ribbon analyzer tells you which group of activities (Critical or Non-Critical) has missing logic.
  • The phase analyzer tells you which time period contains the activities with missing logic.
  • The intersection analyzer pinpoints the path and phase.
