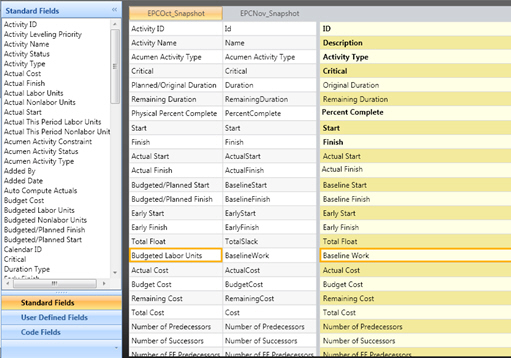

Example of Field Mapping

This field mapping example shows two projects within a workbook.

• Project A is a Primavera P6 project.
• Project B is a Microsoft Project project.

For the Acumen field called Baseline Work, the corresponding default field for Project A (Primavera file) is Budgeted Labor Units whereas in Project B, the same field is known as BaselineWork. Based on the default mappings, Acumen normalizes these fields even though the field names are actually different. Within your workbook, this field is then referred to as Baseline Work.
